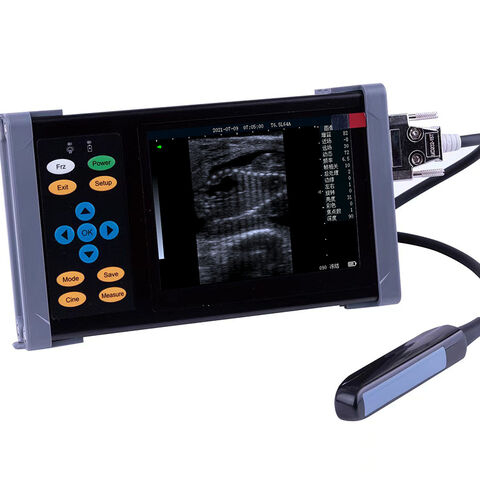

Equipamento de ultrassom veterinário portátil - Máquina de exame de ultrassom para animais

Equipamento animal portátil do exame do ultrassom da máquina do ultrassom

1.Display: 5.6-inch LED display;

2.Scanning mode: convex array scanning

3.Metal wire drawing fuselage, 35mm thick, metal texture, cool fuselage, high heat dissipation;

4.It has automatic backfat function (intelligent one key measurement), fast backfat function (mobile reading ruler) and manual backfat measurement function;

5.Display mode: B, B + B, 4b, B + m, m;

6.Electron focusing: four stage electron focusing;

7.There were more than 18 body position markers;

8.Frequency conversion: five section frequency conversion

9.Image image: rotate the image up, down, left and right, and flip the interface in black and white;

10.With image rotation function, the image can be flipped up, down, left and right;

11.In addition, it has annotation function, which is convenient for text and body mark annotation;

12.Routine measurement: distance, perimeter, area, volume and angle;

13.Specialty measurement, heart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals

14.It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly

15.Character display: gain, frequency, dynamic, date, time;

16.It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;

17.Storage: can be connected to memory card and U disk storage, can browse pictures on this machine;

18.Dynamic range: 0-135db;

19.Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo color processing;

20.Blind area: ≤ 4

21.The maximum display depth is 270mm:

22.organization harmonic, histogram function

23.Interface: USB interface, PAL-D / NTSC video, VGA;

24.Geometric accuracy: transverse ≤ 5%, longitudinal ≤ 5%

25.Resolution: lateral ≤ 2mm, axial ≤ 1mm

26.Display magnification: 16 display modes;

27.Gain range: 0-100db;

28.Near field adjustment range: - 31 ~ 0;

29.Far field adjustment range: 0 ~ 31;

30.It has time and date, video output, TV mode, key tone switch, parameter mode, standby protection, custom gestational age and other settings;

31.Battery power indication, U disk indication, prompt information display;

32.Large capacity lithium battery, imported 18650 standard cell, can work for about 4 hours;

33.Host size: 206x120x35mm (length x width x height);

34.Main engine weight: 950g;

35.No noise, high strength aluminum alloy metal shell natural heat dissipation design
